Appearance

Network ​

Olares provides users with a barrier-free but secure and versatile network solutions. This documents covers the key networking concepts related to application access.

Entrance ​

Each Olares application can have one or more entrances that serve as access points. There are three types of entrances:

Public entrance ​

  • Provides external services such as blogs, social media, etc.
  • Accessible without authentication
  • Basic security through Cloudflare

Private entrance ​

  • Provides services exclusively for individual users, families, or teams
  • Suitable for readers, entertainment, productivity tools, desktop applications, etc.
  • Requires authentication for access

Internal entrance ​

  • Functions similarly to private entrance
  • No authentication required when accessing applications through LarePass VPN

Endpoints ​

An endpoint is the access address or point where users interact with an application. Simply put, it's the URL you enter in your browser's address bar to access a specific Olares application or its features.

A typical Olares application endpoint follows this format:

https://{routeID}.{domain}

For example: https://vault.alice123.olares.com, where

  • vault is the route ID for a system application.
  • alice123.olares.com is derived from the Olares ID alice123@olares.com.

Route ID ​

A route ID is a unique identifier used to identify specific applications or application entrances. The default route IDs are automatically generated by the system according to the following rules:

  • System applications
    • Use predefined memorable Route IDs
    • Examples: desktop (for Desktop), market (for Market)
  • Community applications
    • Use an 8-character random string + entrance index (starting from 0)
    • Example: For an application with Route ID 92d76a13 and two entrances, the first entrance is 92d76a130, and the access URL is 92d76a130.bob.olares.com

Note

  • The URL of the application is derived from Olares ID.
  • Entrance index refers to the position of entrance in multiple entrances defined in OlaresManifest.yaml.

Olares internal network ​

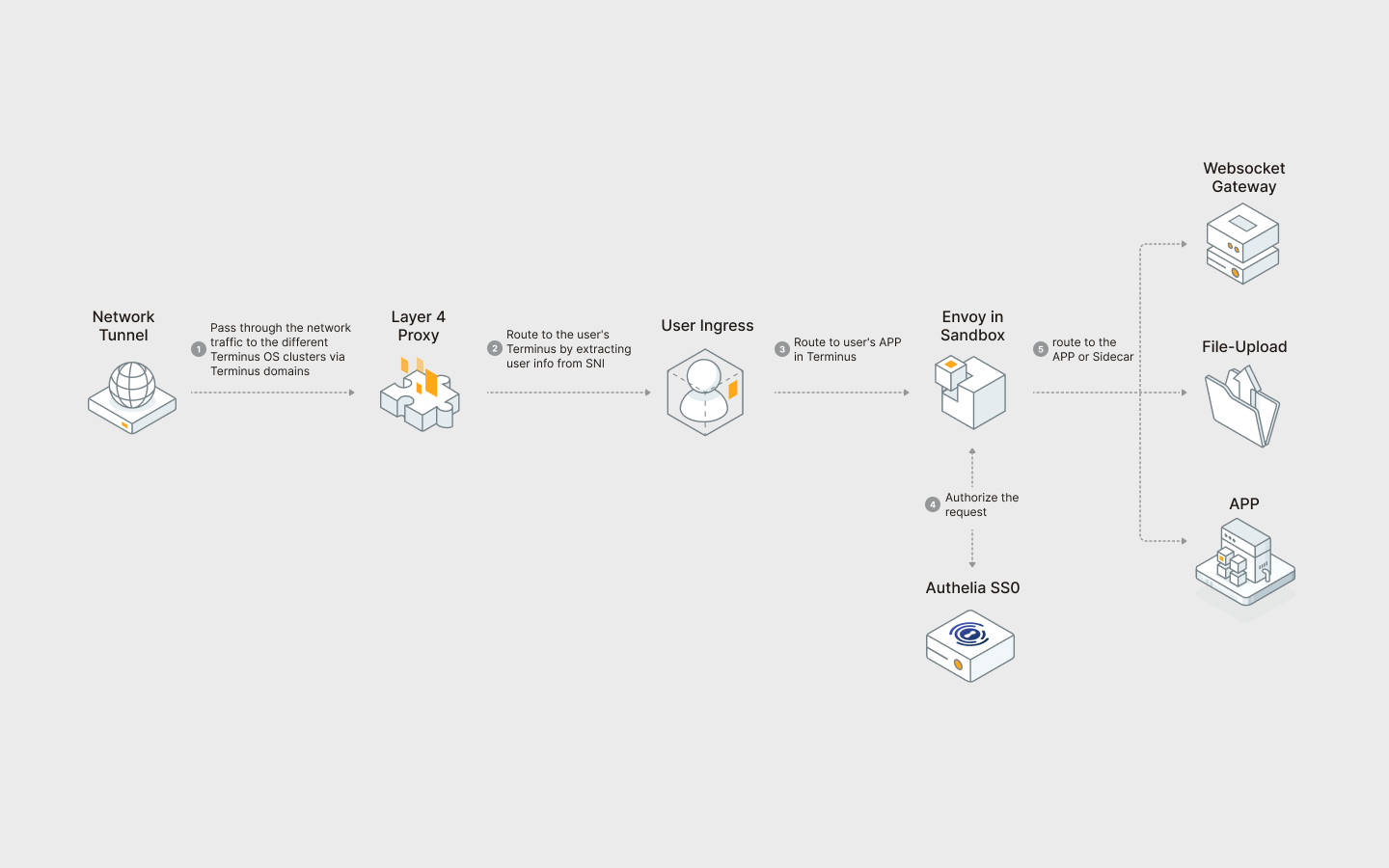

Olares implements a layered proxy routing design in its gateway architecture. Traffic flows through multiple layers:

cluster -> user -> application -> service component.

alt text

Inside the application, Olares has multiple layers of security.

  • Namespace isolation

    • Each application operates in its exclusive namespace
    • All resources are namespace-confined
    • Applications cannot connect ClusterRole to ServiceAccount
    • Cross-namespace resource access is prohibited

  • Network policy controls

    • Each namespace has dedicated network policies
    • Incoming network requests are restricted to cluster applications and system applications of the user
    • User-level network isolation:
      • Applications isolated between users
      • Third-party applications isolated within user space

  • Pod restrictions

    • Pods cannot use hostNetwork service or NodePort service
    • Traffic access requires declared entrance service and system-provided entry proxy
    • The Pod declared as entrance will be forced to join Envoy's sandbox Sidecar to authenticate and authorize incoming traffic.
